Electrical Panel Building
Berakah is a well-known supplier, installer, and electrical contractor of multipurpose, industrial, and control panel boards. To make it more practical and quality for clients, these electrical panel boards are made with high-grade Rittal – A German Company Enclosures.
According to ISO standards, our firm offers a comprehensive selection of electrical control panels to meet the individual demands and requirements of clients.
We have specialization in manufacturing premium quality Power Control Center (PCC panel). It is efficiently used to distribute the power to the different parts of the Plant / Building / Industry / Township and controls the whole power supply from one single place. Our PCC Panels have created tremendous impact on our clients for their assured service with lesser maintenance. Made by high quality Panel Enclosure from RITTAL, these are capable enough to control various industrial operations with guaranteed performance. These complete set up are available for our clients in well customized form as per their requirement in competitive price range.
Description
| Systems Voltage | 380/415/440V |
| Bus Bar | Tinned EC Grade Copper/ Aluminum Sleeved with Colored PVC |
| Bus Bar Short Circuit | Up to 50KA for 3 Seconds Duration |
| Type of construction | Free Standing, Floor Mounted, Cubicle Design |
| Degree of protection | IP 5X |
| Enclosure | RITTAL MODULAR ENCLOSURE with 1.6mm/2mm CRCA sheet steel, Dip coated and Powder coated as per International standards |
| Color | RAL 7032 Shade |
Applications
- Industrial Electrification
- Engineering Units
- Process Industries
- Buildings, etc.
Salient Features
- Our PCC panels are made of fully RITTAL Enclosures
- PCC Panels are fully modular Type
- Enclosures are Dip Coated and Powder Coated 1.6/2mm CRCA Sheet Steel
- For low-voltage switchgear with design verification to IEC/EN 61439-1 and -2.
- For control systems and power distributors structured system solution for switchgear with Form separation 1-4b.
- Simple and friendly installation system assembly
- Based on enclosure platform TS 8
- Profiles are 16 Folded Profile
- All switchgears are Branded Like SIEMENS/ABB/SCHNEIDER/L&T/GE, etc.
- All Meters are Digital Meters
We make MCC Panels as per applications designed by us or as per customer design for a variety of power distribution requirement of the factories. Owing to their excellent performance and minimum maintenance, our products are widely demanded in various industries like chemical plant, cement plant, pharmaceuticals, textiles, construction, paper mills and others.
Description
| Systems Voltage | 380/415/440V |
| Bus Bar | Tinned EC Grade Copper/ Aluminum Sleeved with Colored PVC |
| Bus Bar Short Circuit | Up to 50KA for 3 Seconds Duration |
| Type of construction | Free Standing, Floor Mounted, Cubicle Design |
| Degree of protection | IP 5X |
| Enclosure | RITTAL MODULAR ENCLOSURE with 1.6mm/2mm CRCA sheet steel, Dip coated and Powder coated as per International standards |
| Color | RAL 7032 Shade |
Salient Features
- Our MCC panels are made of fully RITTAL Enclosures
- MCC Panels are fully modular Type
- Enclosures are Dip Coated and Powder Coated 1.6/2mm CRCA Sheet Steel
- For low-voltage switchgear with design verification to IEC/EN 61439-1 and -2.
- For control systems and power distributors structured system solution for switchgear with Form separation 1-4b.
- Simple and friendly installation system assembly
- Based on enclosure platform TS 8
- Profiles are 16 Folded Profile
- All switchgears are Branded Like SIEMENS/ABB/SCHNEIDER/L&T/GE Etc
- All Meters are Digital Meters

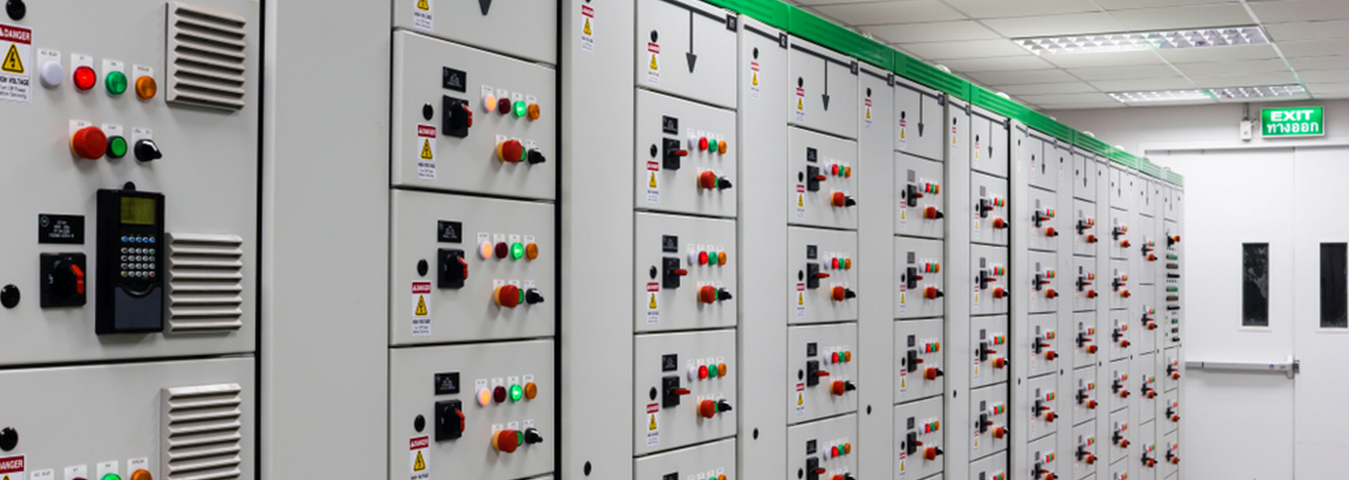

Berakah offers Intelligent MCC panels in a wide range of designs, sizes and we recommend Rittal enclosures for IMCC panels as it results in substantial reduction in the size of panels without affecting any safety or functionality compared to conventional compartmentalized/draw out panels.
IMCC panels
IMCC panels consist of compact ‘Tesys U’ Intelligent Motor Starters for motors up to 15 KW. For motors above 15 KW, MPCB/ contactors are provided with ‘Tesys T’ Intelligent Relays. For applications with heavy loads and requiring speed control, Soft-starters and VFDs are provided.
For incomers and outgoing power feeders, we provide ‘NSX’ Intelligent MCCBs up to 630A and ‘Masterpact’ ACBs up to 3200A.
Communication with PLC is achieved through Canopen/ Modbus/ Profibus/ Devicenet. Warnings, Alarms and Measurement data acquired from Intelligent devices is displayed on local HMI or SCADA. For remote operations of motors from plant DCS, IMCC communication is offered through Profibus or Modbus TCP/IP.
General Specification
| Systems Voltage | 380/415/440V |
| Bus Bar | Tinned EC Grade Copper/ Aluminum Sleeved with Colored PVC |
| Bus Bar Short Circuit | Up to 50KA for 3 Seconds Duration |
| Type of construction | Free Standing, Floor Mounted, Wall Mounted |
| Degree of protection | IP 5X |
| Enclosure | RITTAL MODULAR ENCLOSURE with 1.6mm/2mm CRCA sheet steel, Dip coated and Powder coated as per International standards |
| Color | RAL 7032 Shade |
| Intelligent Relay | Schneider Tesys T Motor Management System |
Salient Features
- Our MCC panels are made of fully RITTAL Enclosures
- MCC Panels are fully modular Type
- Enclosures are Dip Coated and Powder Coated 1.6/2mm CRCA Sheet Steell
- For low-voltage switchgear with design verification to IEC/EN 61439-1 and -2.
- For control systems and power distributors structured system solution for switchgear with Form separation 1-4b.
- Simple and friendly installation system assembly
- Based on enclosure platform TS 8
- Profiles are 16 Folded Profile
- All switchgears are Branded Like SIEMENS/ABB/SCHNEIDER/L&T/GE Etc
- All Meters are Digital Meters
- Automation/SCADA Facility is available.

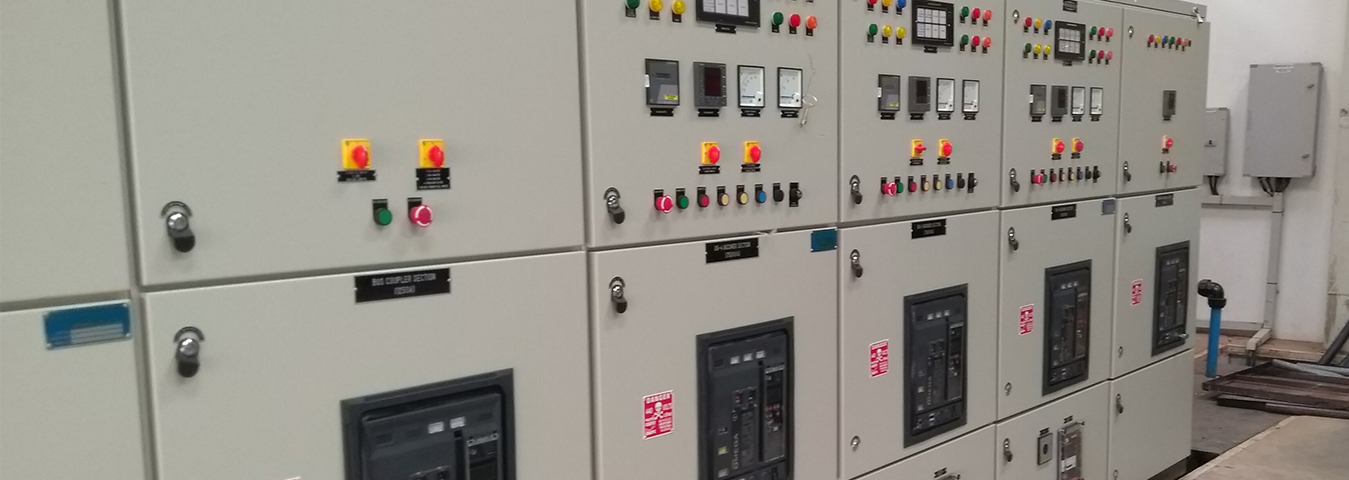

We offer the Synchronizing Panel that is specially designed to meet power system requirements. Our Synchronizing Panel is designed as per the defined quality standards. This panel is manufactured by using quality components and the latest process technology. The Synchronizing Panels are available with both auto and manual control and have trouble free operations as well. Our products are provided with Rated Service Voltage & Frequency of 415 V & 50 Hz respectively. We use RITTAL Panels and DEIF Controllers for DG Sync Panels.
General Specification
| Systems Voltage | 380/415/440V |
| Bus Bar | Tinned EC Grade Copper/ Aluminum Sleeved with Colored PVC |
| Bus Bar Short Circuit | Up to 50KA for 3 Seconds Duration |
| Type of construction | Free Standing, Floor Mounted, Cubicle Design |
| Degree of protection | IP 5X |
| Enclosure | RITTAL MODULAR ENCLOSURE with 1.6mm/2mm CRCA sheet steel, Dip coated and Powder coated as per International standards |
| Color | RAL 7032 Shade |
| DG Sync Relay | DEIF/Woodward/Comap/Deepsea |
DG Sync Benefits
- Automatic Load Sharing in between DG
- Auto Synchronization
- No Need Of Bus Coupler
- Auto Start is Possible if EB Supply is not available
- DG Operate with its maximum efficiency
- No Overloading. Automatically Start the Next DG
- Manual Intervention is not required
- No need to separate Load based on DG Capacity
- Different Capacity/Make can be synchronized
- DEIF Synchronizing Relay is used in our projects
- All Kinds Of Protection Including Reverse Power is Available
- Different Communication Also Possible
Salient Features
- Our DG Synchronization panels are made of fully RITTAL Enclosures
- MCC Panels are fully modular Type
- Enclosures are Dip Coated and Powder Coated 1.6/2mm CRCA Sheet Steel
- For low-voltage switchgear with design verification to IEC/EN 61439-1 and -2.
- For control systems and power distributors structured system solution for switchgear with Form separation 1-4b.
- Simple and friendly installation system assembly
- Based on enclosure platform TS 8
- Profiles are 16 Folded Profile
- All switchgears are Branded Like SIEMENS/ABB/SCHNEIDER/L&T/GE Etc
- All Meters are Digital Meters
We have specialization in manufacturing premium quality fully draw out MCC panels made of Elsteel enclosure. These are efficiently used in critical areas of plants where in case of a starter or power feeder failure will affect the complete process. In such cases the starter module/power feeder module can be fully replaced without isolating the main power. We are authorised channel partner for Elsteel, Denmark for these type of solution. Techno module is a modern, patented modular construction system for building LV panel boards.
Salient Features
- Our Fully Drawout MCC panels are made of Elsteel enclosure
- MCC Panels are fully modular Type
- Enclosures are Dip Coated and Powder Coated 1.6/2mm CRCA Sheet Steel
- For low-voltage switchgear with design verification to IEC/EN 61439-1 and -2.
- For control systems and power distributors structured system solution for switchgear with Form separation 1-4b.
- Simple and friendly installation system assembly
- All switchgears are Branded Like SIEMENS/ABB/SCHNEIDER/L&T/GE Etc
- All Meters are Digital Meters

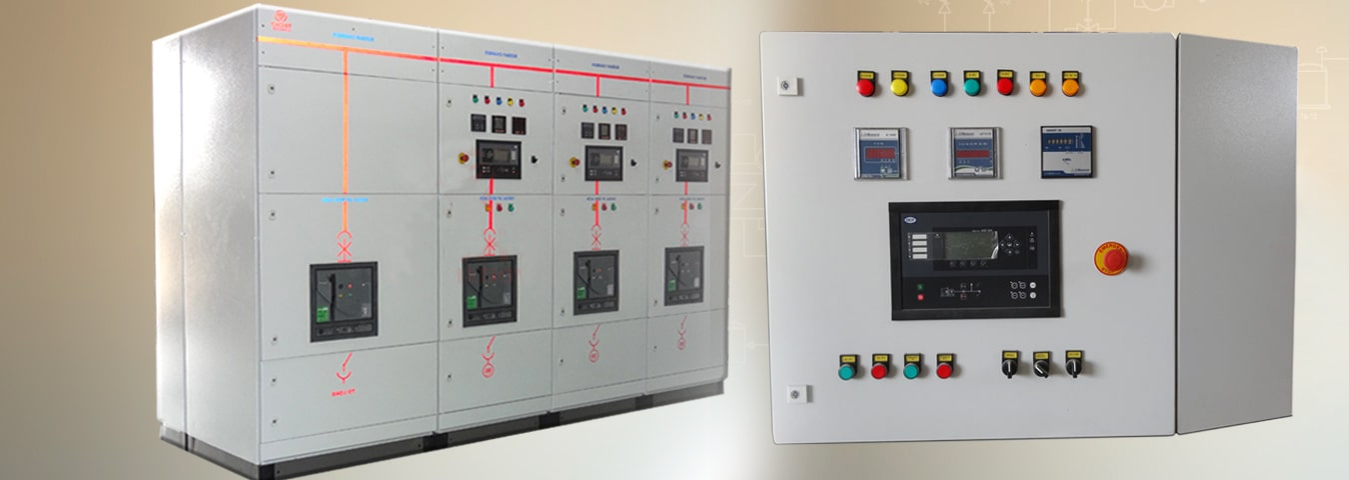

We are known for offering Industrial AMF Panels to the customers. These automatic mains failure panels are used as automatically changeover from mains to stand-by generator in case of power failure. Highly demanded in foundries, apartments, sugar, textiles, chemical industries and others, these panels are designed in compliance with the international quality standards.
Description
| Systems Voltage | 380/415/440V |
| Bus Bar | Tinned EC Grade Copper/ Aluminum Sleeved with Colored PVC |
| Bus Bar Short Circuit | Up to 50KA for 3 Seconds Duration |
| Type of construction | Free Standing, Floor Mounted, Cubicle Design |
| Degree of protection | IP 5X |
| Enclosure | RITTAL MODULAR ENCLOSURE with 1.6mm/2mm CRCA sheet steel, Dip coated and Powder coated as per International standards |
| Color | RAL 7032 Shade |
| DG Sync Relay | DEIF AGC Series |
Applications
- AMF Panel & Battery Chargers are used where the generators are installed between main AC and load.
- It will Start and Stop the Generator automatically and Changeover the EB/Generator lines.
Salient Features
- Our AMF Panels are made of fully RITTAL Enclosures.
- Provides continues monitoring of three phases.
- Automatic Shut down during DG Fault.
- Auto/Manual Selector is available.
- Generator Stop with delay of timing possible.
- Hooter Alarm Annunciation for fail to start.
- Emergency Stop is available.
APFC or Automatic Power Factor Control Panels are mainly used for the improvement of Power Factor. Power Factor can be explained as ratio of active power to apparent power and it is a key factor in measuring electrical consumption. Everyone knows that how costly electricity has become in present time. Therefore it becomes utmost important to cut down on electrical consumption for reducing expenditure.
APFC Panels come real handy in the achievement of this purpose. Use of these control panels becomes indispensable in those industries where electrical installations are meant to supply to large electrical load. A drop in Power Factor can attract operational losses and a penalty from electricity board, responsible for electricity supply.
APFC Panels can effectively and automatically manage quickly changing and scattered loads along with the retention of high Power Factor. We are renowned manufacturers of APFC Panels symbolized with quality and reliability. These are available in different current ratings to cater to distinct applications.
Description
| Systems Voltage | 380/415/440V |
| Bus Bar | Tinned EC Grade Copper/ Aluminum Sleeved with Colored PVC |
| Bus Bar Short Circuit | Up to 50KA for 3 Seconds Duration |
| Type of construction | Free Standing, Floor Mounted, Cubicle Design |
| Degree of protection | IP 5X |
| Enclosure | RITTAL MODULAR ENCLOSURE with 1.6mm/2mm CRCA sheet steel, Dip coated and Powder coated as per International standards |
| Color | RAL 7032 Shade |
| AMF Relay | BELUKE/EPCOS/SCHNEIDER |
| CAPACITORES | BELUKE/EPCOS/SCHNEIDER/SHREEM |
| REACTORS | BELUKE/EPCOS/SCHNEIDER/SHREEM |
Applications
- INDUSTRIAL ELECTRIFICATION
- ENGINEERING UNITS
- PROCESS INDUSTRIES
- BUILDINGS ETC
Salient Features
- Maintains high Power Factor constantly
- High efficiency
- In-built independent fuses
- Protection from excess power in the system.
- Prevents leading Power Factor in low load conditions
- Clearly marked buttons and indicators
- Minimizes harmonic current
- Easy to use
- Corrosion-resistant
- Long lasting
- Electrical insulation
- Protects electrical equipments
Due to drastic reduction in pricing and improvisation of reliablility, Conventional starters- DOL or SDL Star Delta are being increasingly replaced by VFD i.e. Variable Frequency Drives.

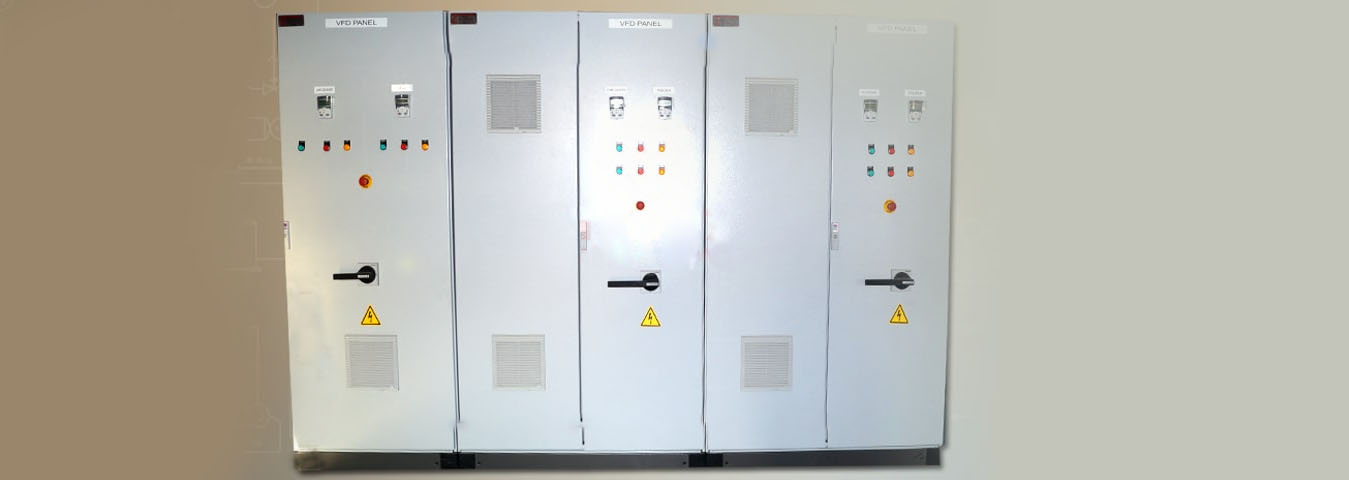

We provide solution for motor control application by way of VFD Panels by using VFDs of various makes such as ABB, Siemens, Allen Bradley, GE Fanuc, Mitsubishi, Schneider, Danfos. VFD’s of various types vector- non vector and of specific applications are used as per customer choice and their preference from view of earlier supplies and inventory.
We provide panels with complete accessories and devices such as Mains switch, MCCB, Input-Output chokes, VFD’s of various makes such as ABB, Siemens, Allen Bradley, GE Fanuc, Mitsubishi, Schneider, Danfoss and bypass arrangement as per criticality of the application. We not only provide excellent quality and workmanship but also provide service support to OEM and customers by way of designing the operation and service manual.
General Specification
| Systems Voltage | 230/380/415/440V |
| Bus Bar | Tinned EC Grade Copper/ Aluminum Sleeved with Colored PVC |
| Bus Bar Short Circuit | Up to 50KA for 3 Seconds Duration |
| Type of construction | Free Standing, Floor Mounted, Wall Mounted |
| Degree of protection | IP 5X |
| Enclosure | RITTAL MODULAR ENCLOSURE with 1.6mm/2mm CRCA sheet steel, Dip coated and Powder coated as per International standards |
| Color | RAL 7032 Shade |
| VFD | ABB/SCHNEIDER/SIEMENS/VACON/FUJI/HITACHI |

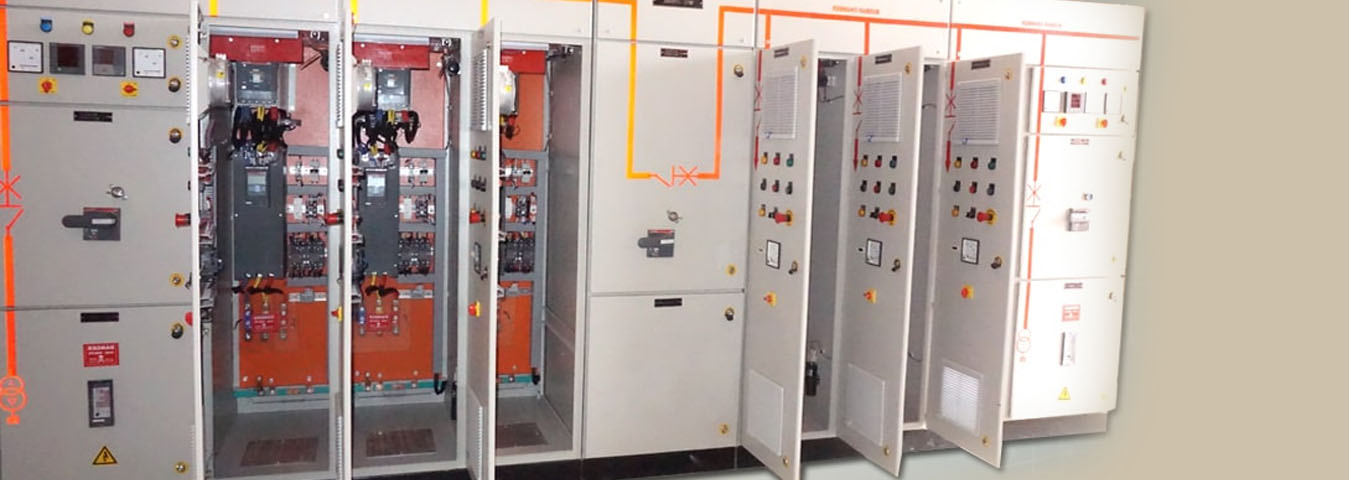

We supply qualitative LV/MV Soft Starter panels that are used to eliminate the high in rush current and start-up torque on every start. MV Soft Starter panels, offered by us, provide starting parameters that increase the life of heavy-duty compressor & blower, ID/FD, fans, chillers, coolers and pumps. We use premium electrical components, compressors, motors and allied material for the fabrication process. The soft starter panels are incorporating with motor protection device/relay as RS 485 communicable with overload, under current, ground fault, current imbalance, over temperature package.
General Specification
| Systems Voltage | 230/380/415/440V |
| Bus Bar | Tinned EC Grade Copper/ Aluminum Sleeved with Colored PVC |
| Type of construction | Free Standing, Floor Mounted, Wall Mounted |
| Degree of protection | IP 4X/ IP 5X |
| Enclosure | RITTAL MODULAR ENCLOSURE with 1.6mm/2mm CRCA sheet steel, Dip coated and Powder coated as per International standards |
| Color | RAL 7032 Shade |
| SOFT STATERS | ABB/SCHNEIDER/SIEMENS/VACON/FUJI/HITACHI |
Salient Features
- Eliminates the high in rush current
- Starts-up torque on every start
- Increase the life of heavy-duty machines
- Incorporated with motor protection device

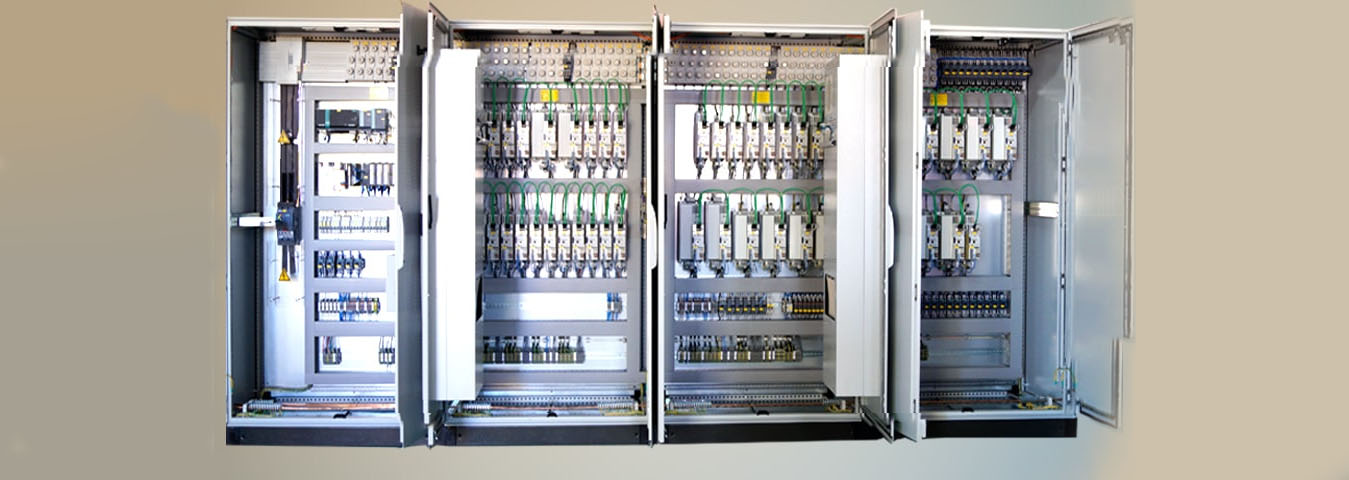

We manufacture advanced technology based Programmable Logic Controller System (PLC) and Supervisory Control & Data Acquisition (SCADA) based industrial automation systems. These systems are in compliance with various industrial standards and are used in machines manufactured at our end. We also design these systems as per the specifications detailed by our clients.
The systems are based on different programming software. These systems help in making the process automatic without any human intervention that in turn also eliminates the possible human errors. The automation of systems makes the whole process accurate with less material wastage and consistent product quality.
The process data is recorded continuously batch wise, line wise and equipment wise and can be shared by using SQL ERP System. This data helps in conducting yield analysis, production rate productivity and material & manpower usage. It also sends text messages to the concerned staff in critical situations. It is managed using Distributed Computing architecture (DCS).
We provide panels with complete accessories and devices such as Mains switch, MCCB, Input-Output chokes, VFDs of various makes such as ABB, Siemens, Allen Bradley, GE Fanuc, Mitsubishi, Schneider, Danfoss and bypass arrangement as per criticality of the application. We not only provide excellent quality and workmanship but also provide service support
We provide PLC based Control panels for Various Industrial Application, Machine Automation, and OEM Solutions etc.
Salient Features
- We do the complete design based on the process requirement
- We design and select required sensors and process instruments based on customer requirement
- We design & select the PLC, necessary hardware including touch screen with various Industrial Communication for the Entire Plant/Machine Automation
- Complete panel / Control desk Building facility
- We prepare process operational flow chart based on the actual requirement
- PLC Logic & SCADA Screens will be prepared based on the application
- Site Commissioning & Service Supports
Berakah offer best quality Bus Ducts that can be customized as per the customer’s requirements. All these products are specially designed for different industrial applications are designed to provide better connection, superior performance and more security. We have a fully equipped facility with the latest and most sophisticated machines. These Ducts also go through stringent quality checks at all levels. These products can also be customized as per client’s requirements.
Low Voltage Bus Ducts
- Air Insulated metal enclosed Bus Ducts up to 4000Amps 50kA
- Phase segregated & non segregated metal enclosed bus duct
- Super compact IP68 Resin cast Bus Duct up to 6300Amps
- Sandwich type bus duct up to 6300Amps
- Sandwich type rising mains with tap-off arrangement up to 6300Amps
Rising Mains
- Air insulated, Non-segregated type
- Indoor Vertical Erection type
- Busbar of upto 1250A ratings
- Short Circuit rating of 50KA for 1 sec RMS
- Fixed type Tap off Boxes
- Flexible In-line Connections
- Fire Barriers
- Wall supports
Salient Features
- Bus Duct with required rating, Fault Level.
- Designing of Bus Duct to achieve required Fault Level, considering temp. Rise, Thermal Rating, Stress, withstand capacity and all applicable de-rating factors.
- Bus Duct up to 4000A With Copper/Aluminum Bus-bar.
- Busbar Supported on DMC/SMC Support.
- Busbar with Heat Shrinkable Sleeve.
- Indoor/Outdoor Duty, Separate adapter at both end With Space heater and earth Bus.
- Sandwich Type Also Provided

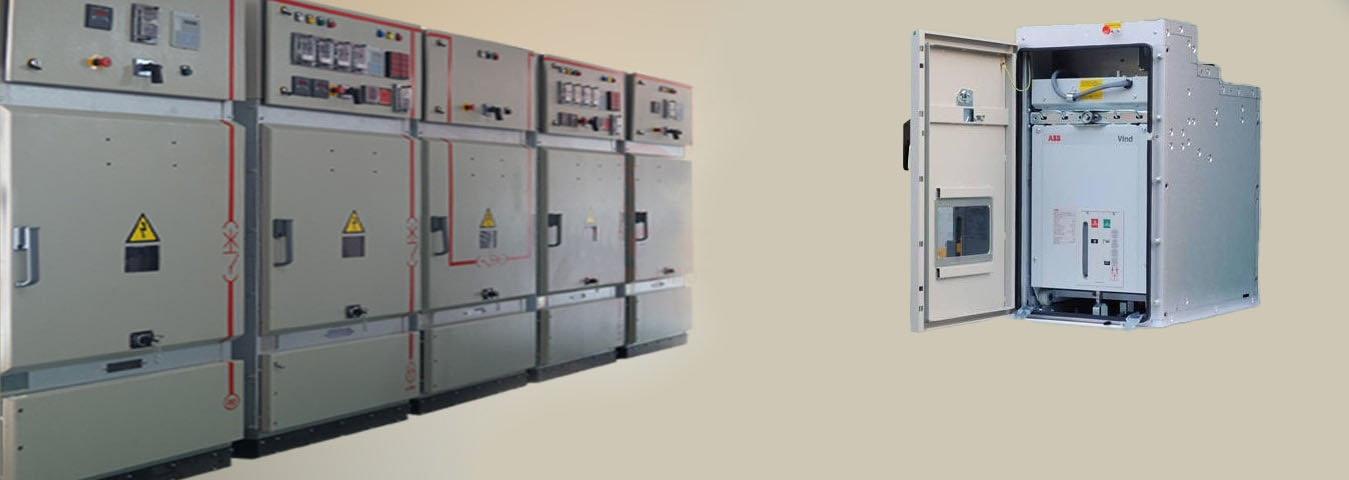

Berakah is the one of the leading manufacturers of 11KV Vacuum Circuit Breaker Panel (11kV VCB Switchgear) that is known for high performance, rigid construction and longer service life. The panel is user-friendly and easy to operate. The panel is high in performance, provide accurate results and require less maintenance. Its reliable operating mechanism also ensures safety of the user.
11KV Vacuum Circuit Breaker, HT Panel (Indoor Type) for protection of Transformer, HT Capacitor, Generator, HT Motor, feeder & line.
Our clients can avail from us a comprehensive range of 11kV VCB Panel which are available in the rated voltage & current of 12 KV and up to 1250 A. These are highly demanded all across the world because of their longer service life and resistant to weather. Our products have 1800 mm of depth for single breaker and 1600 mm for multiple breakers.
“All our VCBs are customizable, please call us to get your Vacuum Circuit Breaker built as per your requriement.”
We also make standard VCB panels as per the below specification.
General Specification
| Supply | 3 Phase |
| Rated Voltage | 12 KV |
| Rated Insulation Voltage RMS | 28 KV |
| Peak | 75 KV |
| Rated Current | Up To 1250 A |
| Rated Frequency | 50 Hz |
| Short Time Withstand Current | 26.3 KA For 3 Seconds |
| Peak Withstand Current | 66 KA |
| Degree of protection Overall | IP:5X |
| Within Compartments | IP:2X |
| Dimension Width | 800 mm |
| Depth | 1800 mm For Single Breaker 1600 mm For Multiple Breaker |
| Height | 2200 mm |
